A Tesla coil is an electrical device invented by Nikola Tesla in 1891. It is designed to generate very high voltage, low current, high-frequency electricity.
In simple terms, it’s a machine that can create electric sparks (like mini lightning ⚡) and even transfer energy wirelessly.
Special Thanks to Our Sponser – JLCPCB:
No project is complete without the right tool and materials. That’s why our sponser JLCPCB stepped into provide essential material for the project. JLCPCB is a leading provider of high quality printed circuit board and PCB assembling services.
Simply head over to JLCPCB, Upload your gerber file, select specification and just place your order.
48-Hour Turnaround for 6 Layer PCBs!
$0 for 2u” ENIG. Free Via-in-Pad. High Precision. Sign Up to Get $80 New User Coupons.
How To Order PCB
Main Components

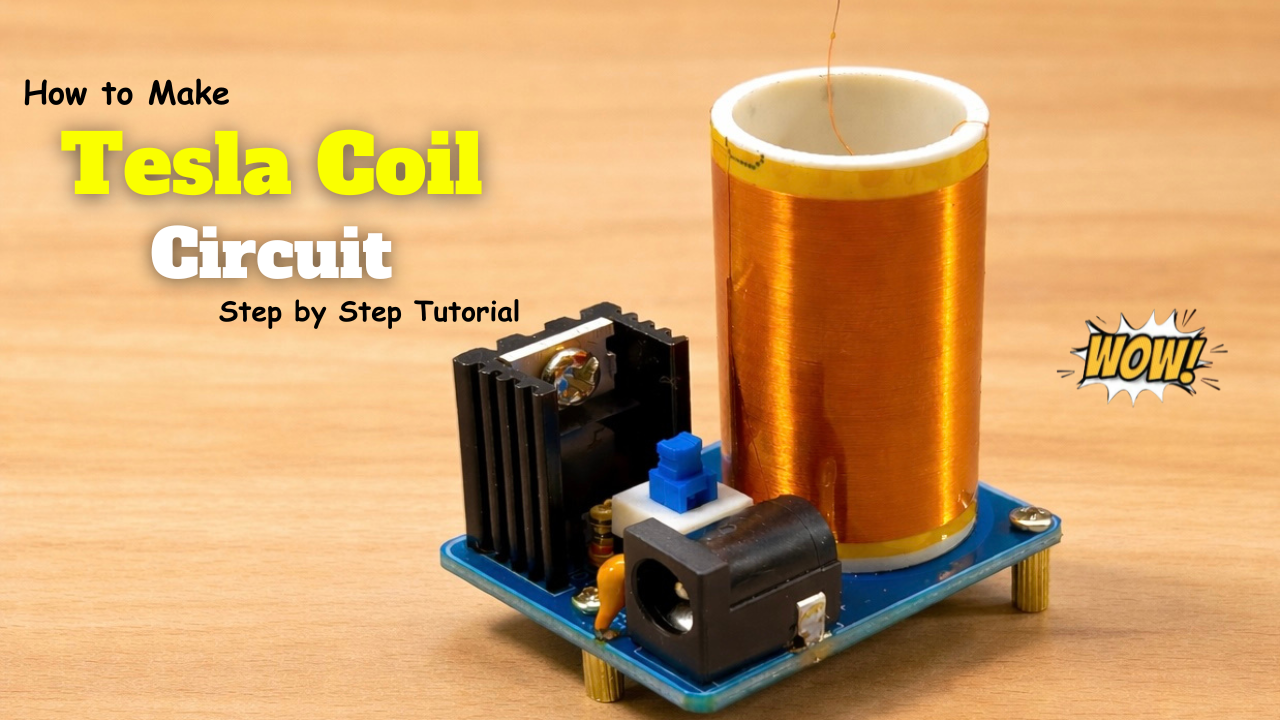

A typical mini Tesla coil (often called a Slayer Exciter) includes:
- Secondary Coil (many turns of thin copper wire)
- Primary Coil (few turns of thick wire)
- Transistor (like 2N2222 / TIP31 / BD139)
- Resistor
- Power Supply (battery or adapter)
The mini Tesla coil works on electromagnetic induction + feedback oscillation:
Step-by-step:
- Power ON
Current flows through the primary coil. - Magnetic Field Creation
The primary coil creates a changing magnetic field. - Induction in Secondary Coil
This field induces voltage in the secondary coil. - Transistor Switching (Oscillation)
The transistor rapidly turns ON/OFF, creating high-frequency pulses. - High Voltage Output
Voltage increases in the secondary coil. - Wireless Energy Transfer
The electric field around the coil can:- Light a bulb 💡
- Create sparks ⚡
Why It Works Without Wires?
The coil produces a high-frequency electromagnetic field.
When a bulb is brought near it:
- The field induces current in the bulb
- The bulb glows without direct connection
