A Music Reactive Light (also called a Sound Reactive Light or Music Sync Light) is a lighting system that changes its colors, brightness, or patterns according to the music or sound being played.
Components Required:
- MOSFET IRFZ44N
- Transistor BC547
- Condenser Microphone
- Resistor – 10k, 120k, 1m ohm
- Capacitor 104 0.1f
- Connector

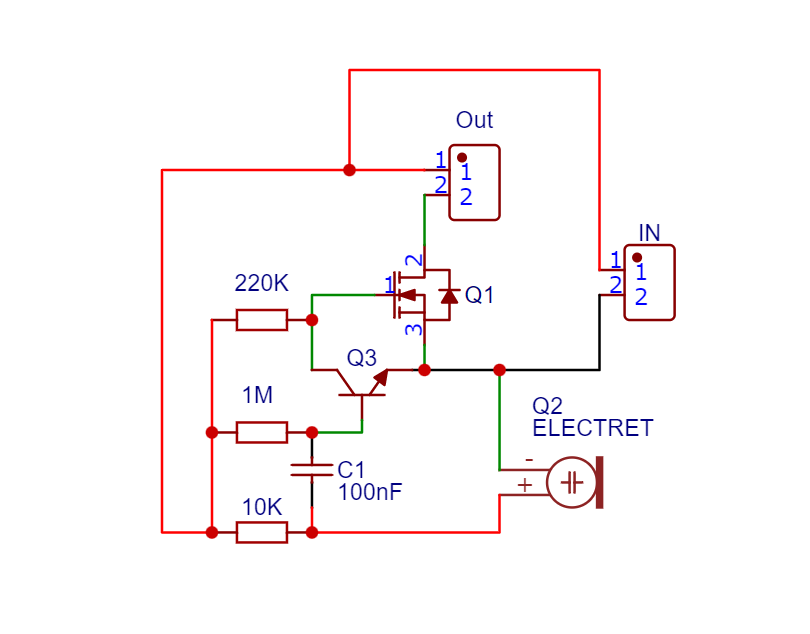

Circuit Diagram:
Special Thanks to Our Sponser – JLCPCB:
No project is complete without the right tool and materials. That’s why our sponser JLCPCB stepped into provide essential material for the project. JLCPCB is a leading provider of high quality printed circuit board and PCB assembling services.
Simply head over to JLCPCB, Upload your gerber file, select specification and just place your order.
48-Hour Turnaround for 6 Layer PCBs!
$0 for 2u” ENIG. Free Via-in-Pad. High Precision. Sign Up to Get $80 New User Coupons.
How To Order PCB

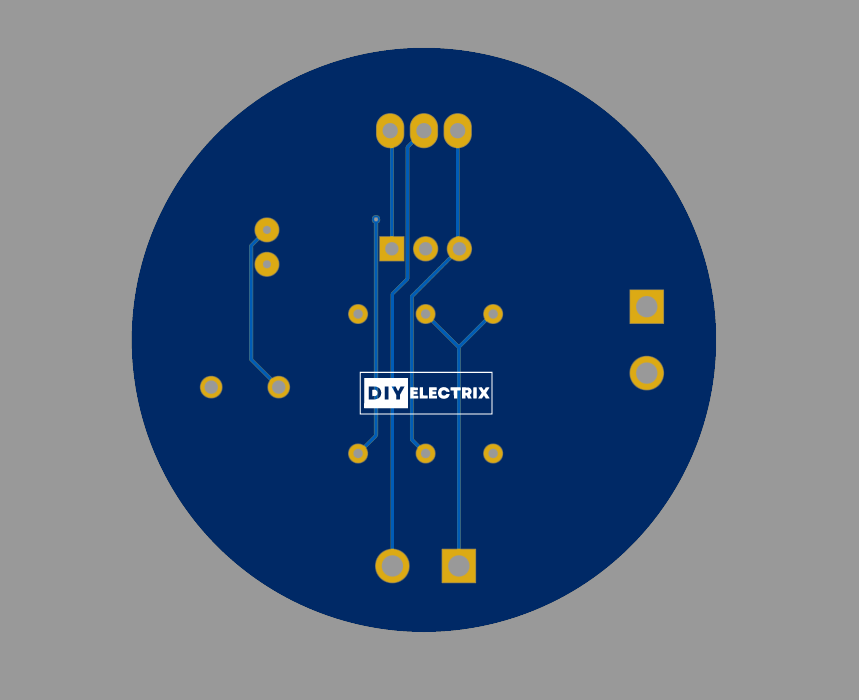

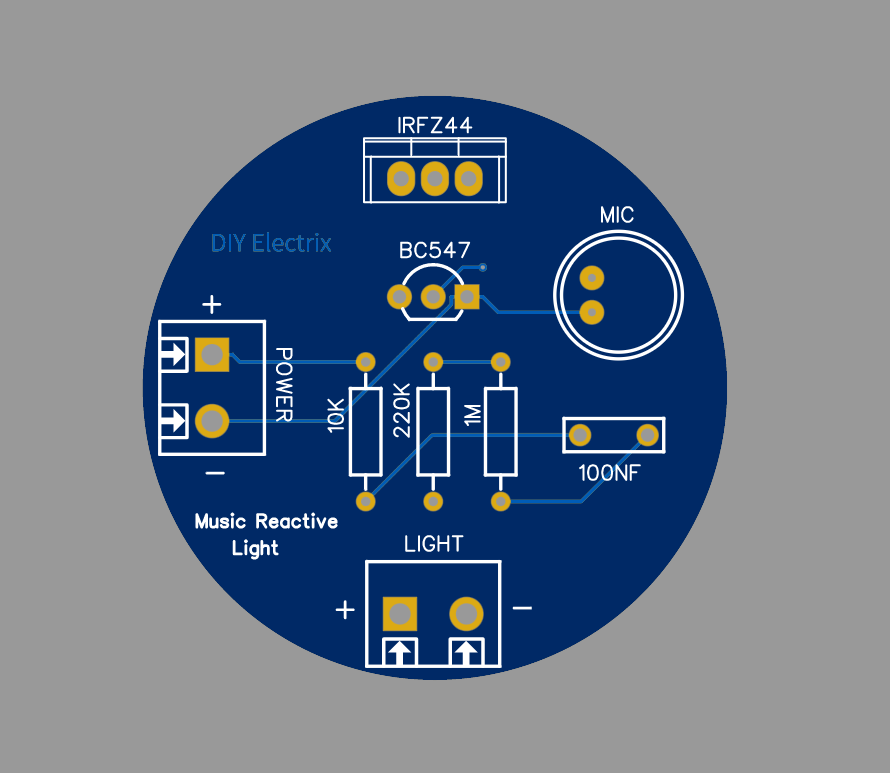

Gerber File:
